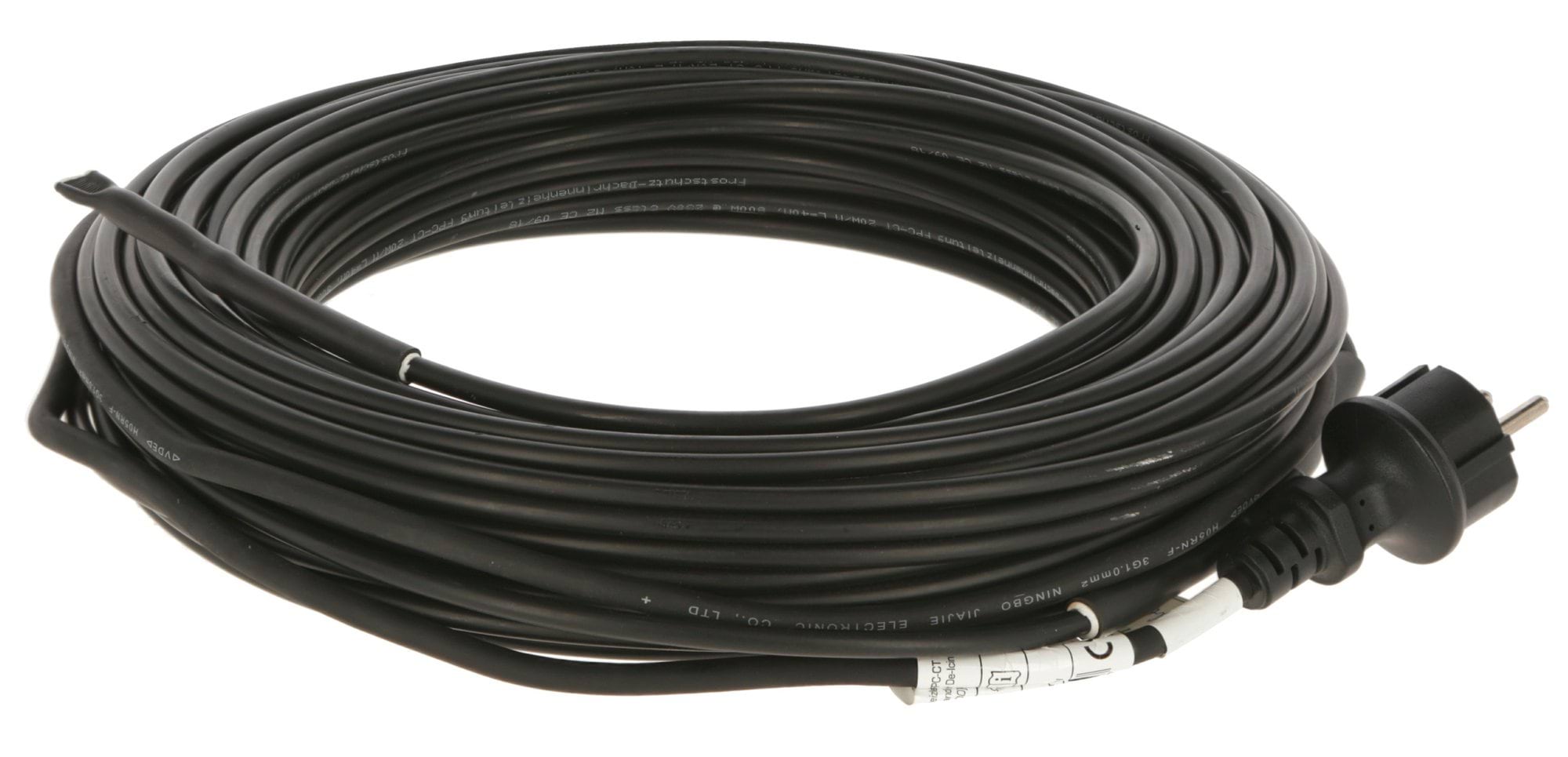

Anti-freeze Gutter Heater cable 15m, with thermostat

• Plug-in heating cable, designed to protect the water installation in the barn and as protection against freezing of gutters and pipes, roofs, driveways, sidewalks, pipelines, drainage channels, heat pumps, and stairs;
• Integrated thermostat that turns on when the temperature drops below +3 °C and turns off at a temperature of about +12 °C;

• Thermostat ensures energy savings;
• Connecting cable length: 2 m;
• Protection class: I;
• Underwater waterproof class IPX7;
• Mechanical strength class M2;
• High heating power of 20 watts per meter means that the heating cable protects gutters, downpipes, and pipes from frost even at very low temperatures;

• The heating cable is ready to connect;
• Integrated thermostat ensures energy savings;
• Safety plug provides a high level of safety;

Note:

• Please note that each heating cable connection must be protected by a separate residual current circuit breaker. (e.g., item no. 10-0876, plug-in PRCD switch);
• The heating cable should be protected from sharp edges, e.g., at the junction of the gutter with the downpipe, using edge protection (item no. 10-0875);
• The heating cable must not overlap, cross, or come into contact with itself or other heating cables at any point;
• To permanently prevent contact, we recommend using appropriate spacers if necessary (item no. 10-0874);
• For safety reasons, pipes and metal gutters, protective pipes, and covers must be grounded before installation;

What to remember about 230 V heating cables:

• Always attach the heating cable to the bottom of the pipe;
• The water pipe must be grounded;
• 230 V heating cables are ready to connect and should be connected to the power supply with a circuit breaker (residual current circuit breaker 30 mA);
• Heating cables must not be shortened and therefore should be ordered in the appropriate length;
• Excess length can be wrapped around the pipe (note that there should be a gap of at least 15 mm between coils);
• The heating cable must not be bent, pay attention to the maximum bending radius of approx. 50 mm;
• Heating cables can be attached to the pipe with insulating or aluminum tape (10-2417);
• When using plastic pipes, wrap aluminum tape (10-2417) around the pipe before laying the heating cable;
• The pipeline and heating cable should be insulated with a maximum insulation of 13 mm;
• The thermostat on the heating cable should be mounted in the coldest place on the pipe;
• The thermostat can only be moderately insulated;
• Do not use 230 V heating cables in areas where there may be a risk of animal bites;
• The installation must be carried out in accordance with VDE0100.
