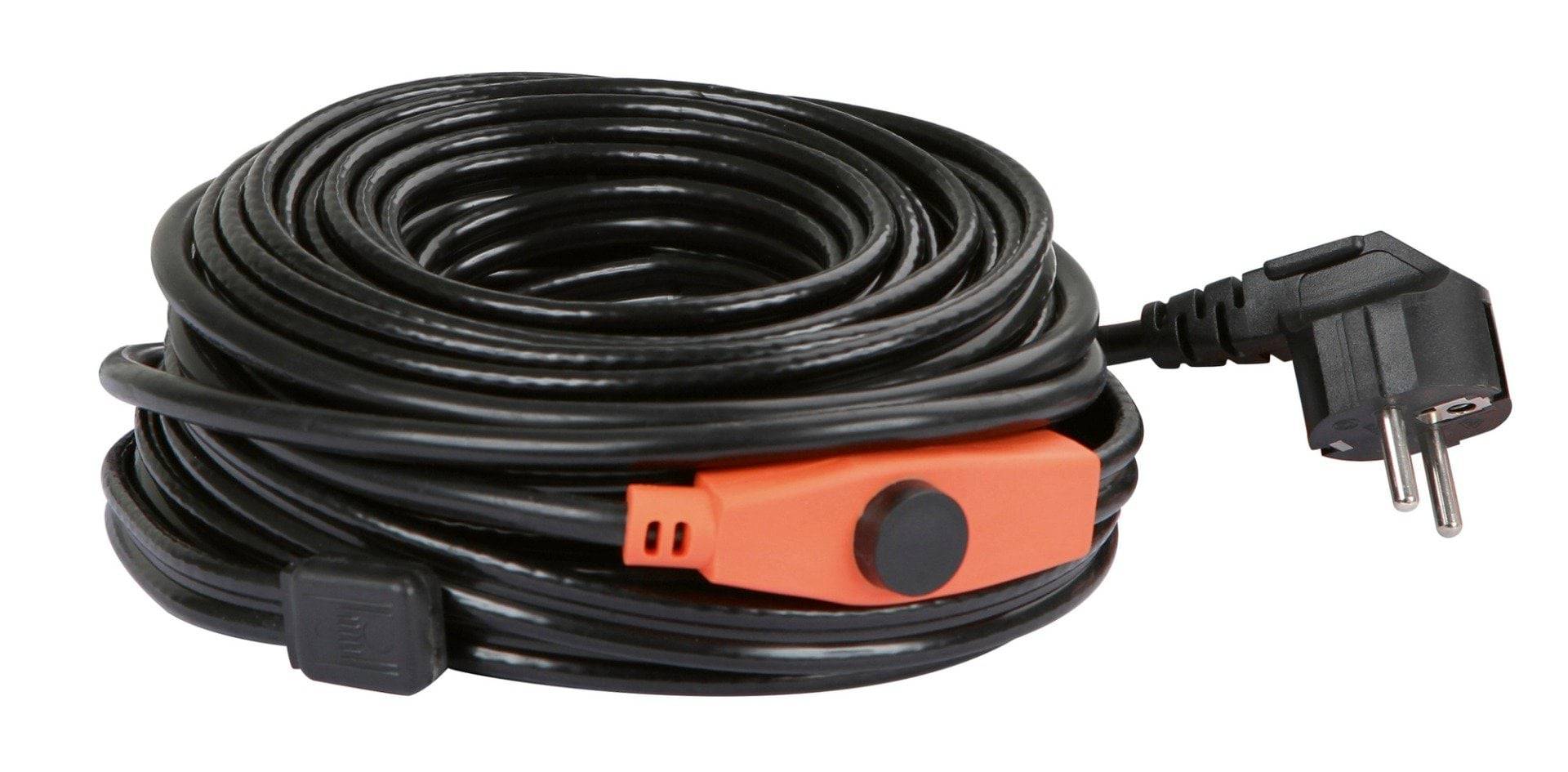

Frost-protection heating cable with thermostat, 12 m, 192 W

SKU
223588
  • Heating cable designed to protect the water installation in the barn and as protection against freezing;
  • Effective at temperatures as low as -45°C;
  • Integrated thermostat that turns on when the temperature drops below 5°C and turns off at around 13°C;
  • Connecting cable length: 2 m;
  • Underwater waterproof class IPX7;
  • Mechanical strength class M1.


Note:

  • Do not use cables on heating pipes;
  • Do not use 230 V heating cables in areas where there is a risk of animal bites;
  • Heating cables cannot be shortened, so they must be ordered in the correct length;
  • Do not insulate the thermostat;
  • Always attach the heating cable to the bottom of the pipe;
  • The water pipe must be grounded;
  • 230 V heating cables are ready to connect and should be connected to a power source with a circuit breaker (30 mA residual current device);
  • Excess cable length can be wrapped around the pipe (remember to maintain a distance of at least 15 mm between coils);
  • Do not bend the heating cable, pay attention to the maximum bending radius of approx. 50 mm;
  • Heating cables can be attached to the pipe with insulating or aluminum tape (10-2417);
  • When using plastic pipes, wrap aluminum tape (10-2417) around the pipe before laying the heating cable;
  • The pipeline and heating cable should be insulated with a maximum insulation of 13 mm;
  • The thermostat on the heating cable should be mounted in the coldest place on the pipe.
