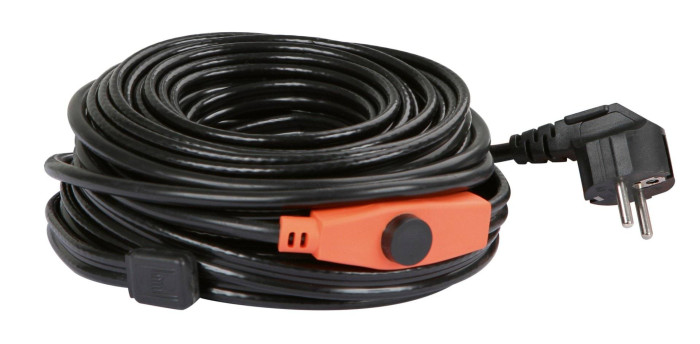

Frost-protection heating cable with thermostat, 2 m, 32 W

• Heating cable designed for protecting water installations in barns and as protection against freezing;
• Effective at temperatures as low as -45°C;
• Integrated thermostat that turns on when the temperature drops below 5°C and turns off at around 13°C;
• Connecting cable length: 2 m;
• Underwater waterproof class IPX7;
• Mechanical strength class M1.

Note:

• Cables must not be used on heating pipes;
• Do not use 230 V heating cables in areas where there is a risk of animal bites;
• Heating cables must not be shortened, so they should be ordered in the correct length;
• The thermostat must not be insulated;
• Always attach the heating cable to the bottom of the pipe;
• The water pipe must be grounded;
• 230 V heating cables are ready to connect and should be connected to a power source with a circuit breaker (30 mA residual current device);
• Excess cable length can be wrapped around the pipe (remember to maintain a minimum distance of 15 mm between coils);
• Do not bend the heating cable, pay attention to the maximum bending radius of about 50 mm;
• Heating cables can be attached to the pipe with insulating or aluminum tape (10-2417);
• When using plastic pipes, wrap aluminum tape (10-2417) around the pipe before laying the heating cable;
• The pipeline and heating cable should be insulated with a maximum insulation of 13 mm;
• The thermostat on the heating cable should be mounted in the coldest place on the pipe.
