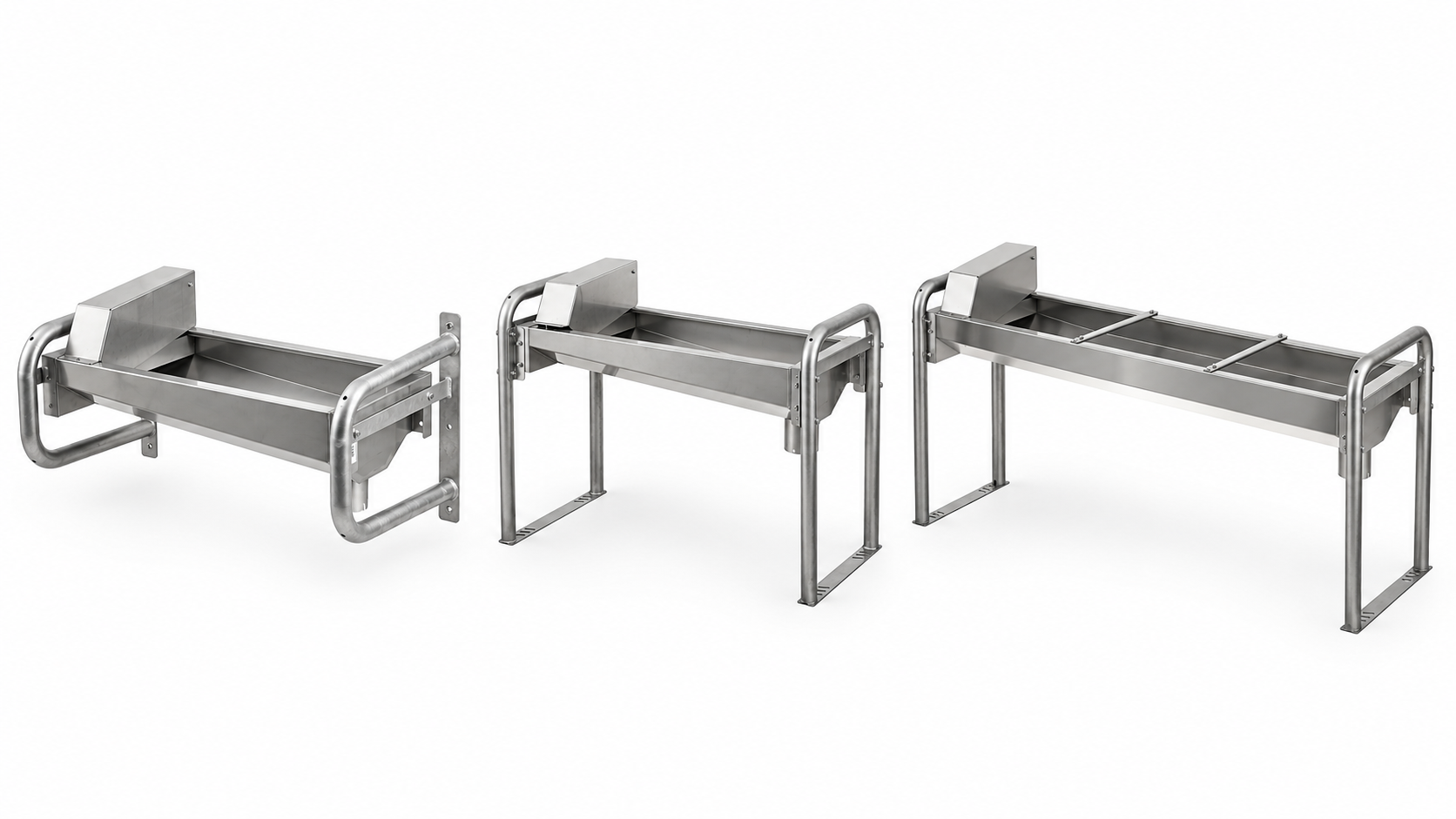

Kerbl Trough Drinker, Stainless Steel, Heated, Various Types

The Kerbl trough drinker is designed for livestock, intended for the permanent supply of water in breeding and agricultural facilities. Made of stainless steel and equipped with heating, it is suitable for use even during periods of low temperatures. The product comes in several installation types and lengths, enabling selection of the right variant for the specific installation location.

Key Information

• Product type: trough drinker
• Brand: Kerbl
• Material: stainless steel
• Heating function: heated
• Capacity: 50 l or 95 l, depending on the version
• Internal length: 100 cm or 190 cm, depending on the version

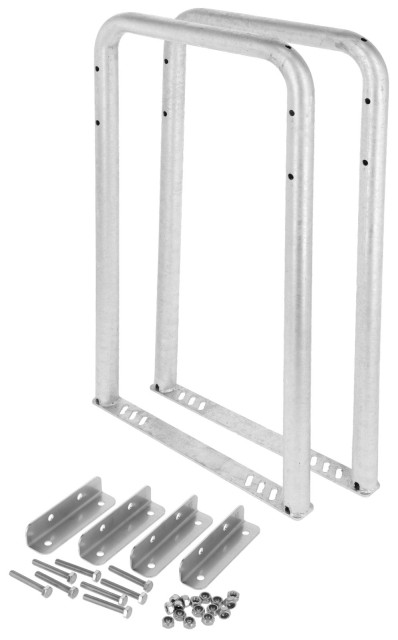

• Installation: wall-mounted or floor-mounted, depending on the version
• Water: G 3/4" connection, large drain and sloped bottom for easy emptying
• Frost protection range: up to approx. -15 °C with built-in heating

Application

This drinker is suitable for farms where animal water access must be assured in winter. It can be used in livestock buildings for cattle and horses, especially where convenient filling and fast water discharge are required. The versions with different lengths and mounting options help adapt the drinker to the arrangement of pens or passageways. It is a solution for places where the drinker will be used intensively and requires adaptation for daily use.

Operating Principle

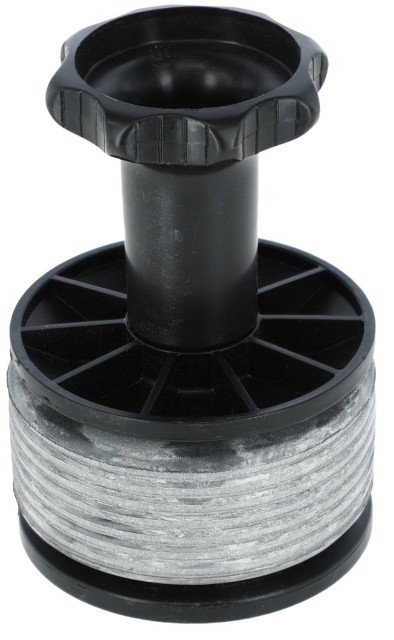

Water flows into the trough via a high-capacity float valve, which maintains the proper filling level. The sloped bottom and large outlet speed up emptying and help the interior self-clean from standing water. In the heated version, the heating system keeps the drinker operational during frost. A pressure plug is used for draining and closing the outlet, and the connection fits a KG DN 100 pipe.

In Practice

For daily use, it is important that the drinker combines large capacity with easy drainage, which simplifies operation in a barn or stable. Stainless steel is ideal for areas with direct water contact and frequent use. Wall-mounted and floor-mounted versions make it possible to adapt installation to the building’s conditions without changing the operating logic. For the heated variant, it is also essential that it can work in sub-zero temperatures, reducing the risk of water freezing. When choosing a specific variant, both the trough length, mounting type, and working capacity matter.
