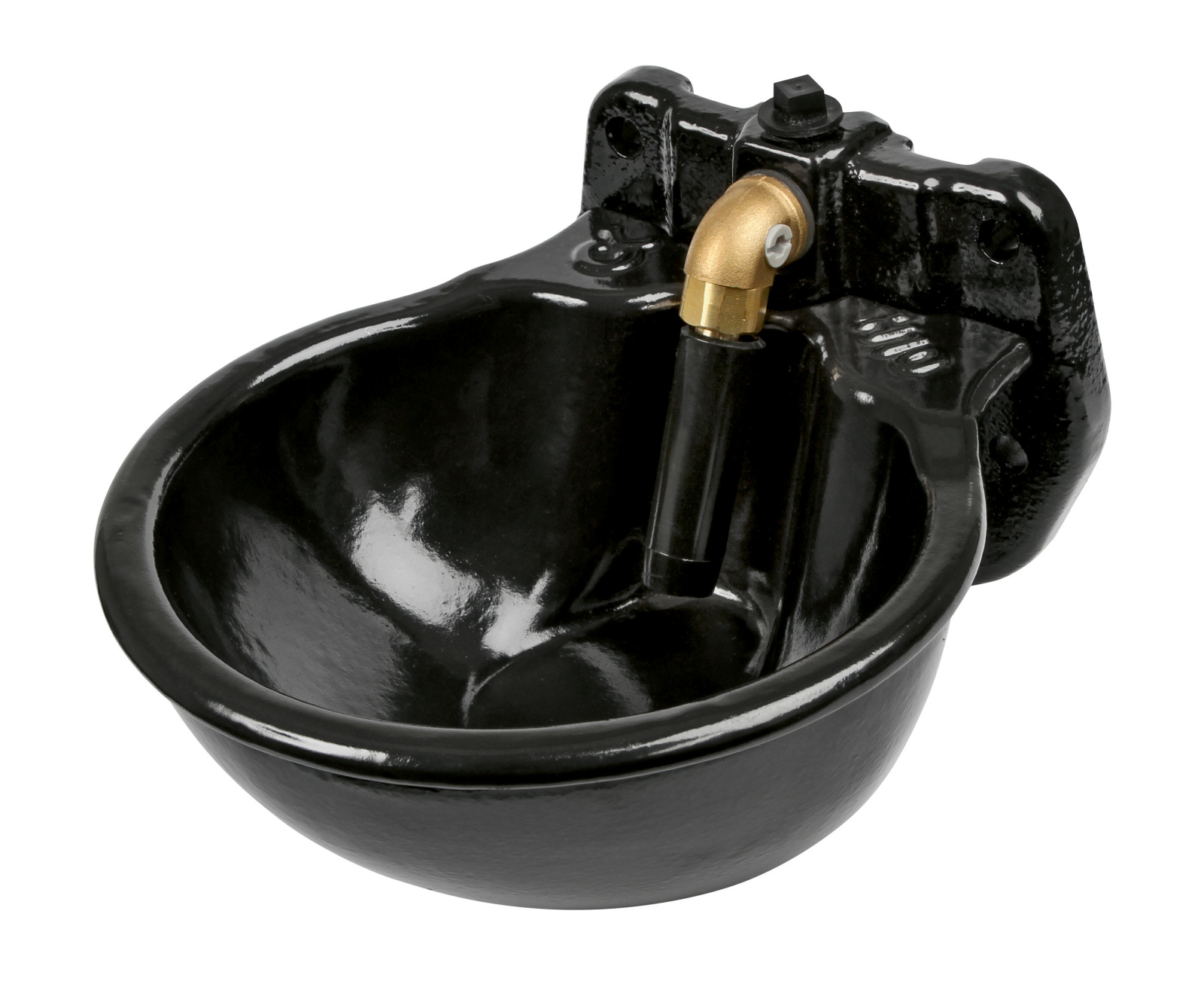

Heated Water Bowl with Tube Valve H10, various capacities, black, Kerbl

The H10 heated water bowl is designed for cattle and horses, providing access to water during cold weather. It is suitable for barns, stables, and other locations where the waterer needs to work in winter and reduce the risk of water freezing.

Main Features

• Product type: heated drinker with tube valve
• Model: H10
• Capacity: 1.6 l
• Power supply: 24 V / 80 W
• Water connection: G 1/2"
• Material: grey cast iron, enamelled / powder-coated
• Colour: black
• Dimensions: 25.8 x 28.2 x 17.8 cm
• Operating range: frost-proof down to approx. -20 °C
• Installation: wall or pipe mounting

Product Advantages

• Advanced freeze protection: keeps water liquid at temperatures down to -20°C, and the built-in fuse prevents the tube valve from freezing.
• Adjustable water flow: the water flow can be adapted to the needs of the animals, increasing ease of use.
• Durable construction: the enamelled cast iron bowl is resistant to heavy use and easy to clean.
• Flexible installation: can be mounted on a wall or pipe without dismantling the valve.
• Energy saving: 50 W power ensures efficient operation with minimal energy use, and an optional thermostat (model 222794) helps reduce energy costs.

Application

This is a solution for continuous watering of animals during winter, especially where the water system is exposed to low temperatures. The drinker can be used in livestock buildings and stables to keep water available without frequent maintenance. Suitable for locations with wall or pipe mounting prepared. Water supply is possible both from above and below at the 1/2" connection.

Working Principle

The device heats the valve to help prevent freezing at the water access point. Water flow through the tube valve can be regulated, making it easy to adapt to different operating conditions. The valve does not need to be dismantled during installation, simplifying the mounting process.

In Practice

In daily use, this system allows for watering animals even during frost, without ice forming at the point of water intake. The 1.6 l capacity supports convenient use in systems where water needs to be constantly available. The compact dimensions make it easier to plan installation in limited space near walls or on pipes. The grey cast iron design is well-suited for barns and stables, and the G 1/2" connection matches standard water installations.
