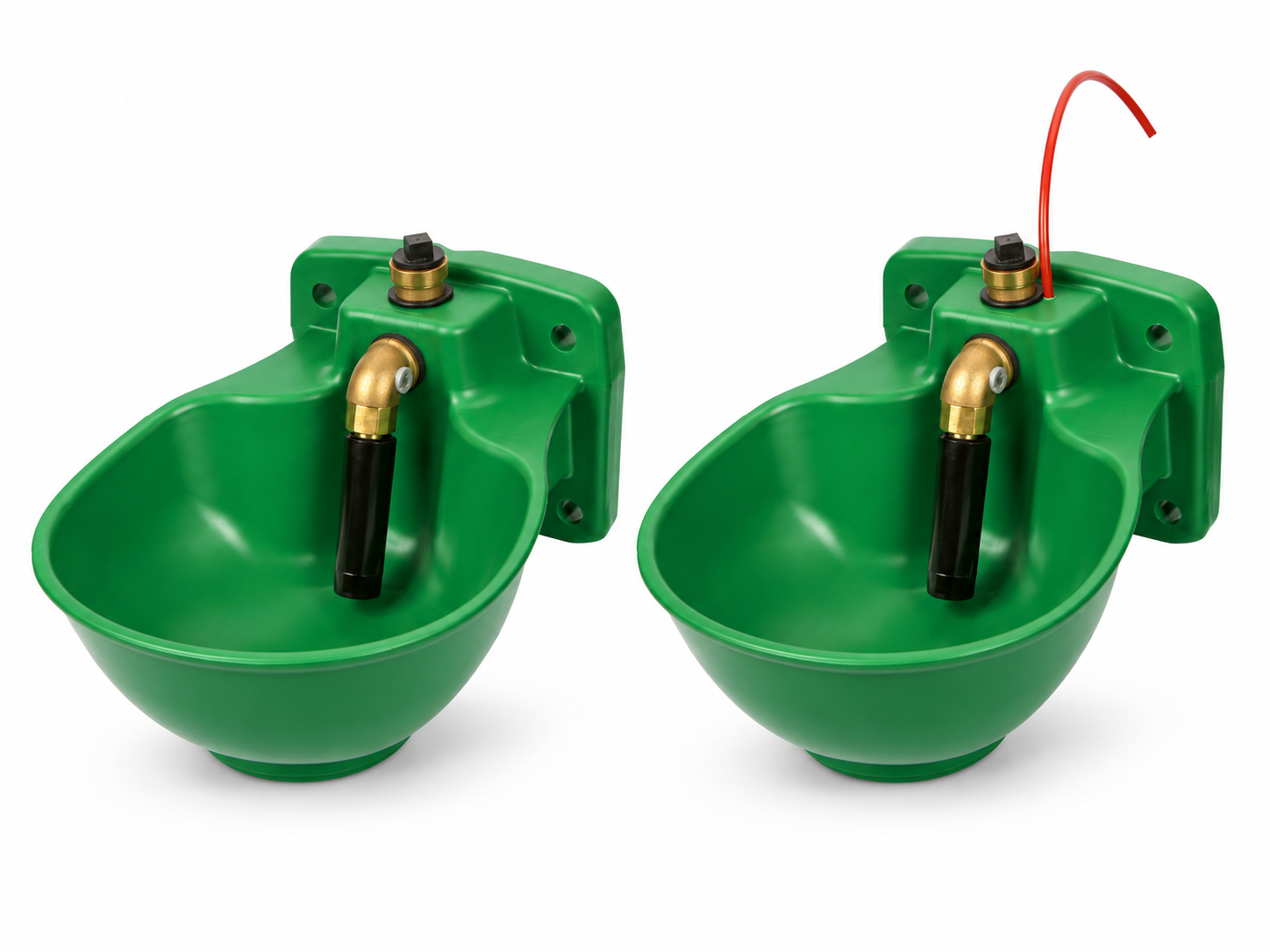

Drinking bowl with pipe valve HP20, various types, plastic, Kerbl

The HP20 drinking bowl with pipe valve is a livestock drinker, designed to provide animals with constant access to water in cowsheds, stables or other animal housing locations. Made of high-quality PP plastic, with a brass pipe valve and built-in thermostat, it is suitable for use at low temperatures, when it is crucial to keep water accessible.

Main information

• Product type: drinking bowl with pipe valve
• Intended use: constant watering of livestock
• Material: PP plastic
• Valve: brass pipe valve
• Capacity: 2.8 l
• Power supply: 230 V
• Power: 73 W
• Frost protection: down to -25ºC
• Water flow rate: adjustable, up to 11 l/min
• Thermostat: built-in
• Activation temperature: approx. +5 °C
• Deactivation temperature: approx. +13 °C
• Mounting: wall or pipe mounting
• Drain hole: for easy cleaning
• Weight: 2 kg
• Dimensions: 252 x 316 x 186 mm
• Colour: green

Application

The HP20 is intended for use where water must be available to animals at all times, even at low temperatures. It is suitable for livestock buildings where reliable watering and operation in a circulating water system are important. Thanks to its compact design, it can be installed where an orderly and durable watering point is needed. The pipe valve allows daily animal watering without the need for frequent manual refilling.

Operating principle

Water enters the drinking bowl via a G 1/2" connection, and the adjustable flow allows it to be adapted to different user requirements. The built-in heating cable helps keep the drinker operational at low temperatures, while the integrated thermostat activates heating at approx. +5 °C and switches it off at approx. +13 °C. The solution is compatible with circulating water heating systems and can operate at temperatures down to around -25 °C. For convenience, a drain hole is provided to facilitate emptying and cleaning the drinker.

In practice

During daily use, the key benefit is maintaining access to water during winter without frequent intervention. The adjustable flow makes it easy to match drinking to animal needs and the installation, and the 2.8 l capacity ensures efficient watering at a fixed point. Wall or pipe mounting allows for flexible installation in the building layout. The drain hole assists in cleaning and emptying the drinking bowl.
