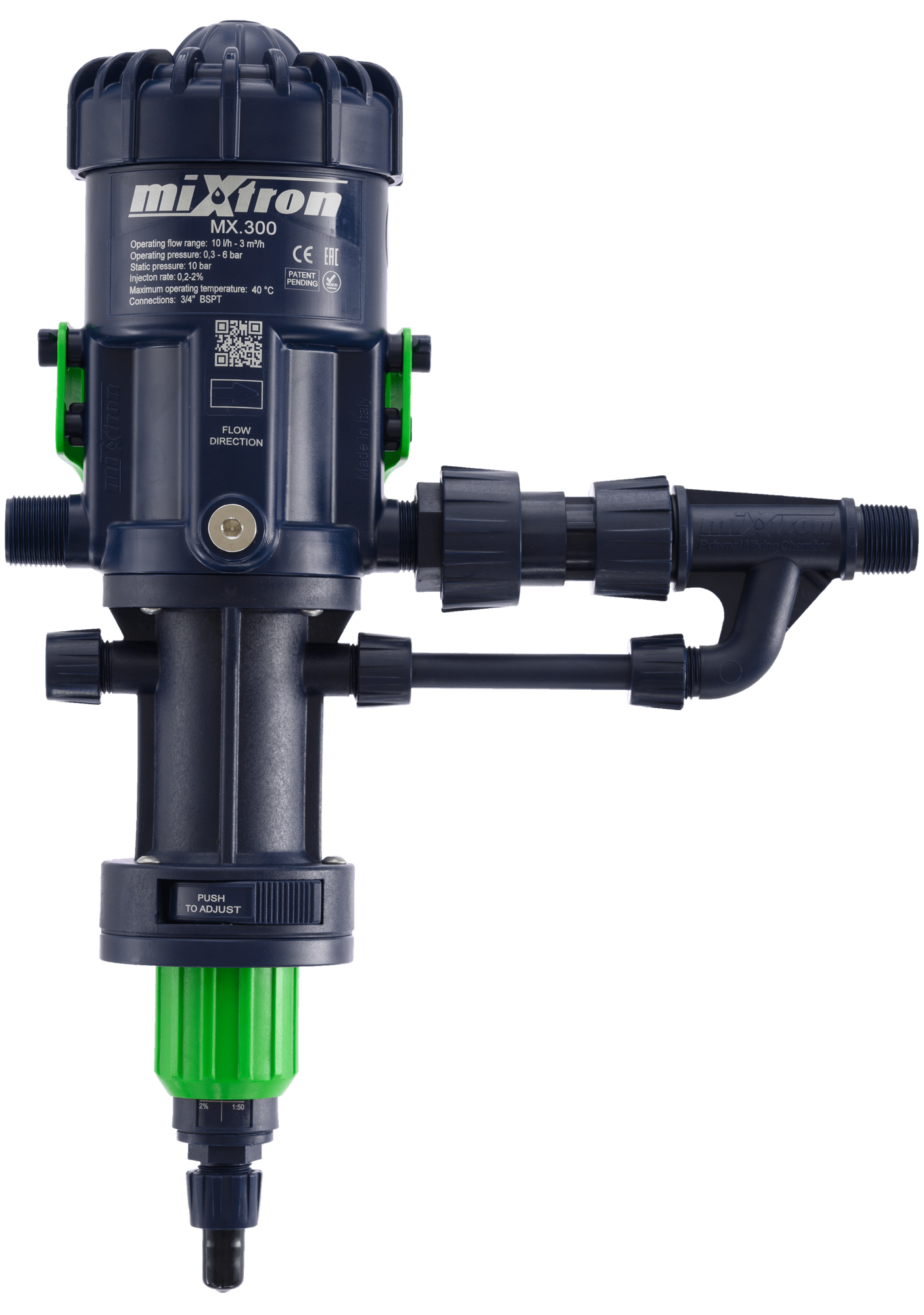

By-Pass dosing pump, 0.2–2%, MX.250.P022.2.B.00.1.BSP.VX, Mixtron

The MX.250.P022 dosing pump is a modern device designed for the precise dosing of a wide range of liquids. Its key advantage is that it operates without an electrical power supply, making it ideal for locations with limited access to electricity or where complete installation mobility is required.

The pump is a versatile and reliable solution for industrial, agricultural, and service applications. Its adjustable dosing range of 0.2% to 2% and operating pressure of 0.3–6 bar make it suitable for numerous processes, including the dosing of chemicals, disinfectants, feed additives, fertilizers, and other liquid products.

Durable Construction

The pump has been engineered for maximum durability and resistance to demanding working conditions.

Metal components are manufactured from AISI 316 stainless steel and Duplex stainless steel, providing excellent corrosion resistance and long-term reliability. High-quality engineering thermoplastics ensure a lightweight yet mechanically robust construction. In addition, a wide range of seal options (Viton, EPDM, Viton EXT) allows the pump to be matched to the chemical properties of the dosed medium, ensuring optimum chemical compatibility and leak-free operation.

Flexible Installation

The pump can be:

• wall-mounted,
• installed directly on a drum.

This provides maximum flexibility when organizing the workplace, improves operator safety, and minimizes the risk of leaks or direct contact with concentrated chemicals.

This model is equipped with a by-pass system, allowing liquids to be mixed outside the pump body. This significantly extends the service life of the pump, especially when dosing highly corrosive or reactive chemicals.

Reliable Performance

The MX.250.P022 is designed to operate at temperatures between 5°C and 40°C and withstands peak static pressures of up to 10 bar, ensuring reliable performance in both cool and moderately warm environments.

The pump also features a unique self-cleaning system, allowing deposits to be removed without dismantling the unit. Simply unscrew the front cleaning screw and let the water pressure flush the internal mechanism.

Technical Specifications

• Flow rate: 2,500 l/h (11.0 gpm)
• Dosing range: 0.2–2%
• Dosing ratio: 1:500 – 1:50
• Operating pressure: 0.3–6 bar (4.35–87 psi)
• Maximum static pressure: 10 bar (145 psi)
• Operating temperature: 5–40°C (41–104°F)
• Installation: Wall-mounted or hanging installation
• Metal components: AISI 316 stainless steel, Duplex stainless steel
• Plastic components: POM, PP, HDPE, PA12
• Seals: Viton, EPDM, Viton EXT

Sustainability

Every Mixtron dosing pump is developed in accordance with sustainable manufacturing principles. Designed as an eco-friendly product and entirely manufactured in Italy using Italian-made raw materials, each pump supports environmentally responsible production and sustainable supply chains.

The pumps are manufactured from 100% recyclable engineering thermoplastics, contributing to a circular economy while maintaining the highest standards of quality, durability, and reliability.
