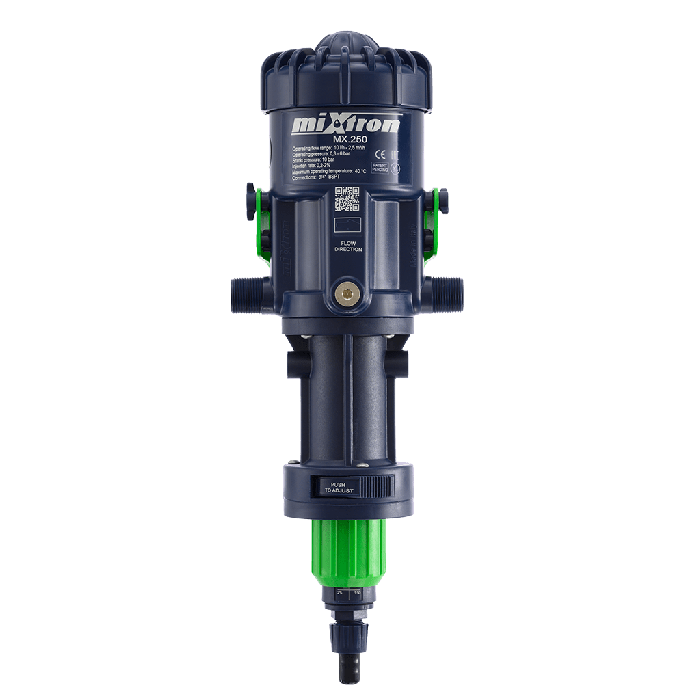

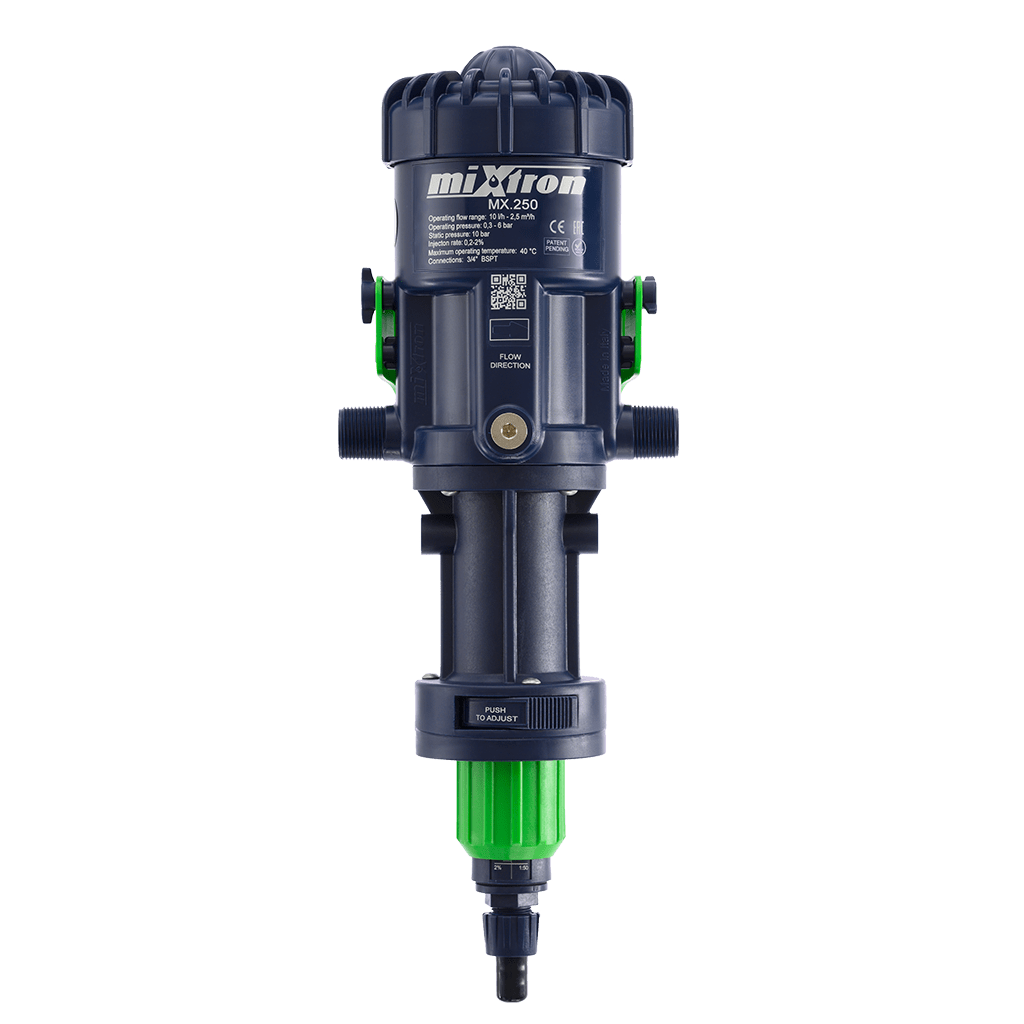

Mixtron Dosing pump, 0.2 - 2%, MX.250.P022.2.S.00.1.BSP.V

The Mixtron MX.250.P022 is a modern water-powered dosing pump designed for the precise dosing of a wide range of liquids without requiring an electrical power supply. This makes it an ideal solution for locations with limited access to electricity or where complete installation mobility is required.

The pump is a versatile and reliable solution for industrial, agricultural, and service applications. Its adjustable dosing range of 0.2% to 2% and operating pressure of 0.3–6 bar allow it to be adapted to numerous processes, including the injection of chemicals, disinfectants, feed additives, fertilizers, and other liquid products.

Durable Construction

The MX.250.P022 is engineered for maximum durability and resistance to demanding operating conditions.

• Metal components manufactured from AISI 316 stainless steel and Duplex stainless steel provide outstanding corrosion resistance and long service life.
• High-quality engineering thermoplastics combine lightweight construction with exceptional mechanical strength.
• Available sealing materials (Viton, EPDM, Viton EXTREME) allow the pump to be matched to the chemical properties of the dosed liquid, ensuring maximum compatibility and leak-free operation.

Flexible Installation

The pump can be:

• wall-mounted,
• installed directly on a drum using a hanging bracket.

This flexibility simplifies workplace organization, improves operator safety, and reduces the risk of leaks or direct contact with concentrated chemicals.

Reliable Performance

The MX.250.P022 is designed to operate at temperatures between 5°C and 40°C and withstands peak static pressures of up to 10 bar, ensuring reliable operation in a wide variety of working environments.

A unique maintenance feature is the integrated self-cleaning system, which allows deposits to be flushed from the pump without disassembly. Simply remove the front cleaning screw and allow the water pressure to clean the internal mechanism.

Technical Specifications

• Flow rate: 2,500 l/h (11.0 gpm)
• Dosing range: 0.2–2%
• Dosing ratio: 1:500 – 1:50
• Operating pressure: 0.3–6 bar (4.35–87 psi)
• Maximum static pressure: 10 bar (145 psi)
• Operating temperature: 5–40°C (41–104°F)
• Installation: Wall-mounted or hanging installation
• Metal components: AISI 316 stainless steel, Duplex stainless steel
• Plastic components: POM, PP, HDPE, PA12
• Seals: Viton (pH 1–7)

Sustainability

Every Mixtron dosing pump is manufactured in accordance with sustainable production principles. Designed as an eco-friendly product and entirely manufactured in Italy using Italian-made raw materials, each pump supports environmentally responsible production and sustainable supply chains.

The pumps are produced from 100% recyclable engineering thermoplastics, contributing to a circular economy while maintaining the highest standards of quality and reliability.
