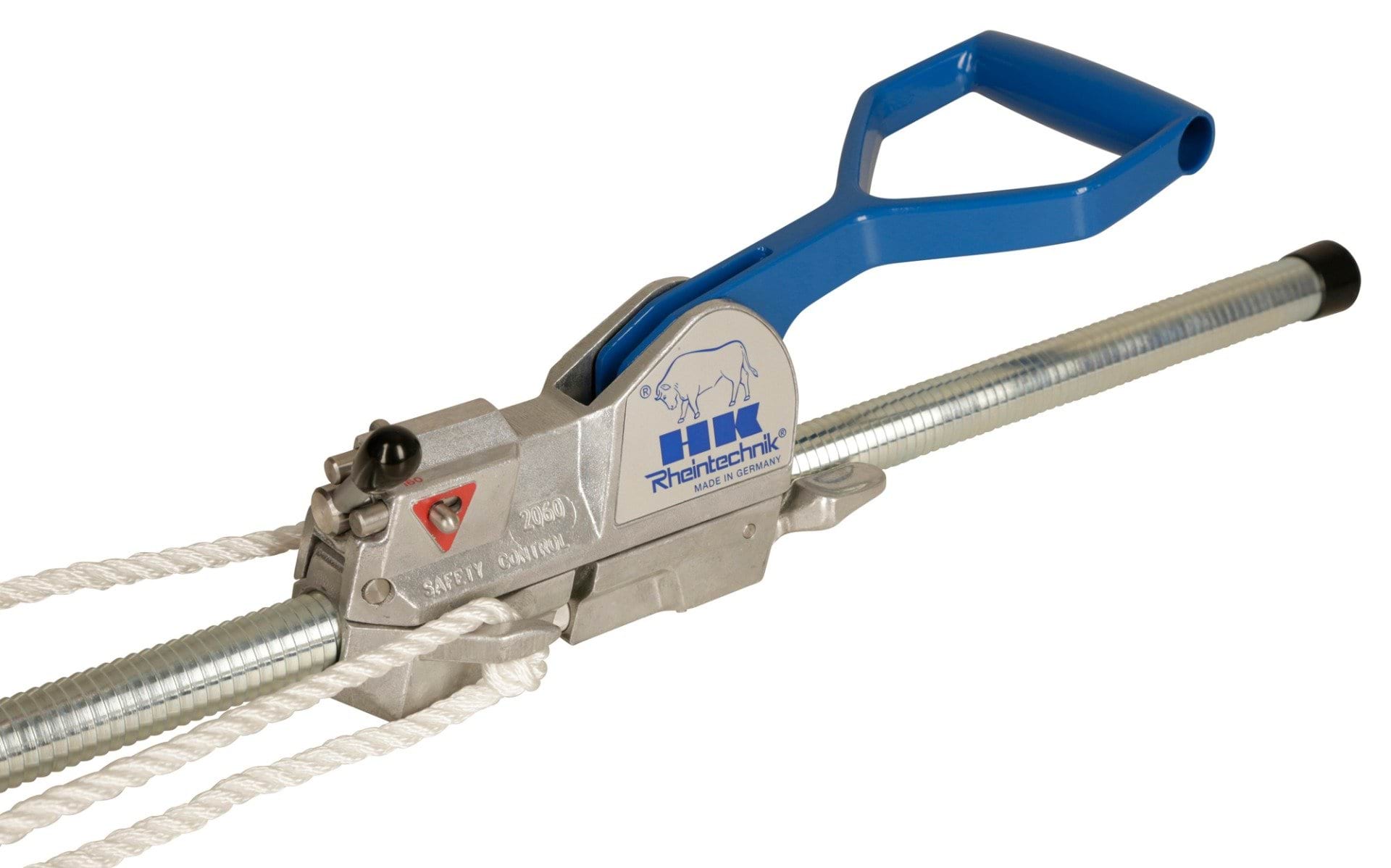

Ratchet mechanism 2060 -compl. - for mod. 2060

MECHANISM 2060 - with tension limiter. The tension limiter will prevent the calf from being pulled out with excessive force. Without adjustment, a pulling force of up to 600 kg can be achieved, which increases the risk of injury to the cow and calf. For normal deliveries, a force of up to 150 kg is sufficient.

The model with the movement 2060 from Rheintechnik is equipped with an adjustable tension control. The lever locks when the pre-set force is reached. Tension control can be released quickly in an emergency.

Advantages:

• light, largely made of aluminum
• with 2 hooks for hanging secretion lines (smooth extraction)
• the quick release mechanism is easy to operate even when under load
• the mechanism in all models rotates around the guide 360 degrees, which provides unlimited flexibility

The product does not contain locking plates, it includes a spring and a pin.
